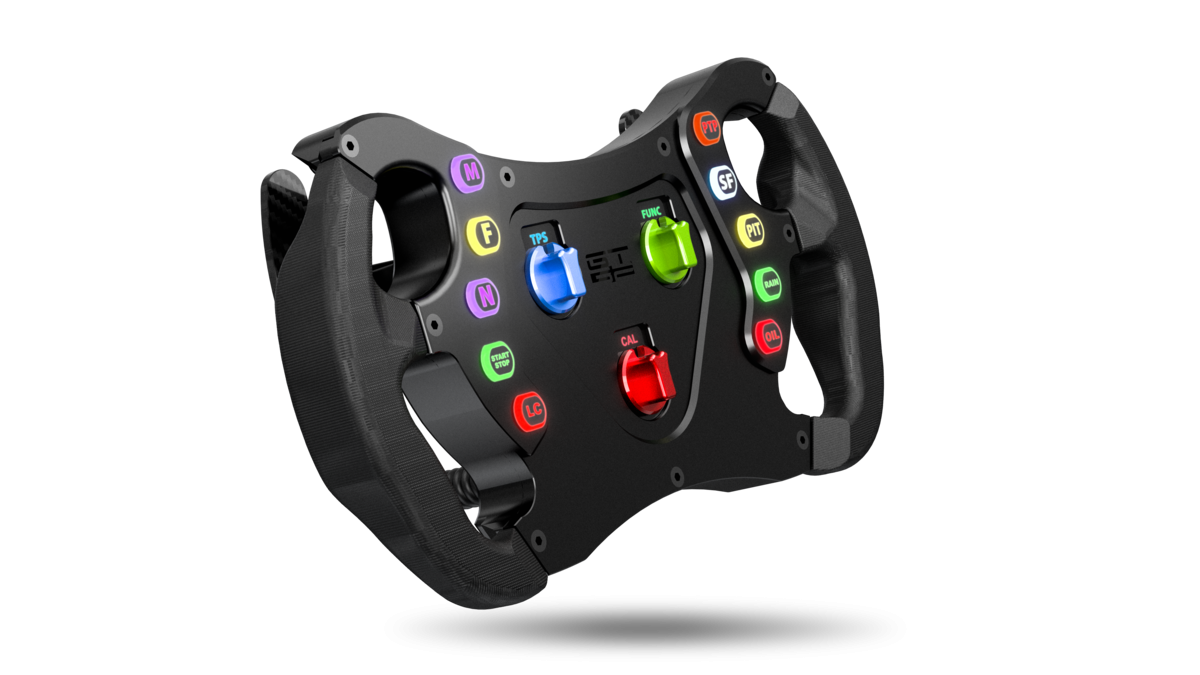

Configurable Backlight

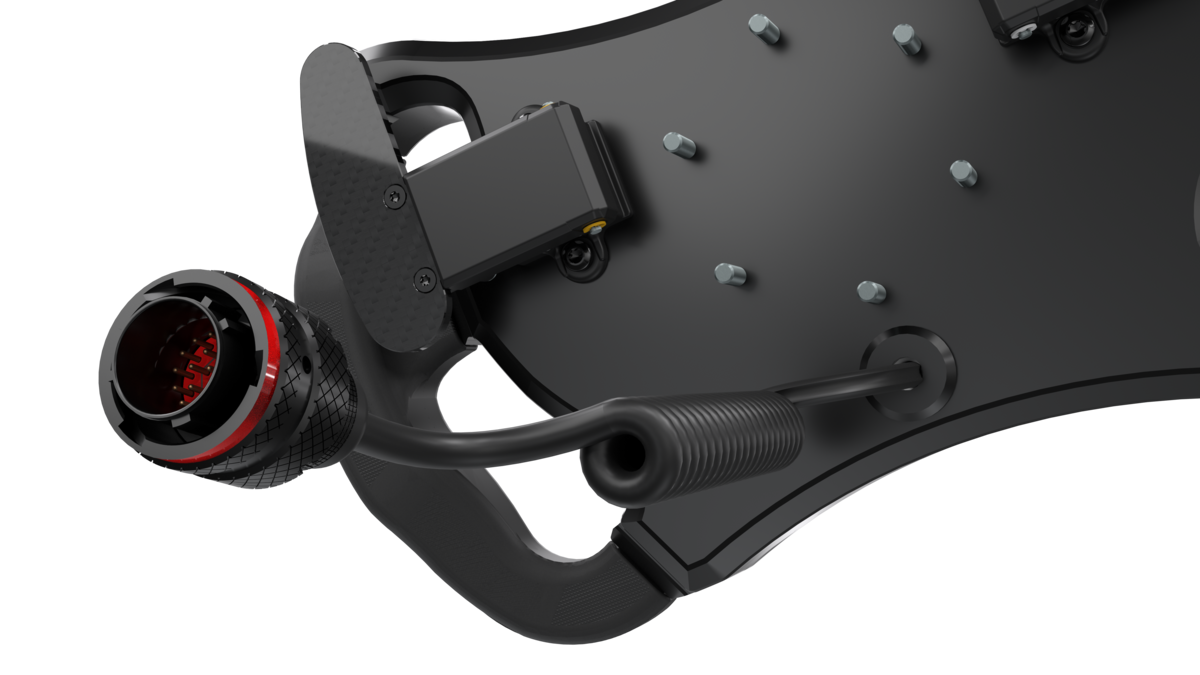

The RGB LEDs can be managed through mathematical channels according to the state of the push buttons and/or feedback from external devices. They can be fixed or flash at the desired frequency and preferred light level. Finally, the shift paddles also feature free contacts on a dedicated pin of the Autosport connector.

Specifications

• 320 mm diameter
• Connection CAN AiM
• Made of Anodised Aluminium
• 10 buttons with RGB LEDs for backlighting
• 3 rotary switches with RGB LEDs for backlighting
• Autosport Connector
• 2600 grams weight
• IP 67
• Easy configuration with Race Studio 3 software

Button configuration

The RGB LED behind the 10 buttons and backlit multi-position switches are designed to instantly find the right input in the heat of competition. Each LED can be fully programmed via Race Studio 3The switches can function as momentary, switch or multi-state and each option can be configured depending on the time the button is pressed or other conditions according to specific needs.

CAN output on RS3

The data flow of each button can be managed in the output CAN. Through this function you can once again customise all the details of your configuration: the number of bytes allocated, data length, the order of the bytes and the frequency from 1Hz to 100Hz.
